Quick Tips

Ensure quad ring is fully seated in housing groove and lube with clean oil before installation.

Quad ring can normally be used for several oil changes.

Torque filter to either factory specs or 18-20 lb ft, whichever is less

Filter Number S203

  MSRP USD

Finish Options:

Machine Finish (shown) = $439

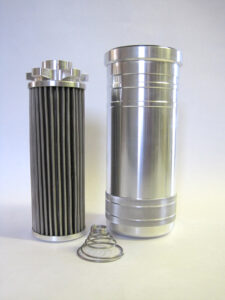

S203 PARTS LIST

Housing Quad Ring QR4 Filter Element Retaining Spring FERS5 Thread or ID

Overall
Diameter

Overall
Length

Quad Ring OD (For Housing) in 13/16 x 12 3.75 8.5 2.78 mm 95.25 215.9 70.61

Quick Tips

Ensure quad ring is fully seated in housing groove and lube with clean oil before installation.

Quad ring can normally be used for several oil changes.

Torque filter to either factory specs or 18-20 lb ft, whichever is less

Filter Number S206

  MSRP USD

Finish Options:

Machine Finish (shown) = $439

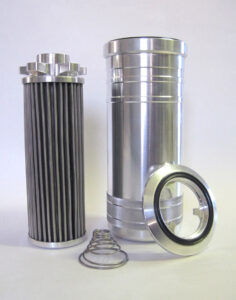

S206 PARTS LIST

Housing Quad Ring QR4 Filter Element Retaining Spring FERS5 Gasket Plate Quad Ring QR3 Thread or ID

Overall
Diameter

Overall
Length

Quad Ring OD (For Housing) in 7/8 x 14 3.75 8.5 2.78 mm 95.25 215.9 70.61

Quick Tips

Ensure quad ring is fully seated in housing groove and lube with clean oil before installation.

Quad ring can normally be used for several oil changes.

Torque filter to either factory specs or 18-20 lb ft, whichever is less

Filter Number S209

  MSRP USD

Finish Options:

Machine Finish (shown) = $439

S209 PARTS LIST

Housing Quad Ring QR4 Filter Element Retaining Spring FERS5 Gasket Plate Quad Ring QR3 Thread or ID

Overall
Diameter

Overall
Length

Quad Ring OD (For Housing) in 1 x 12 3.75 8.5 2.78 mm 95.25 215.9 70.61

• Ensure quad ring is fully seated into housing groove then lube with clean oil before installation.
• Quad ring can normally be used for several oil changes.
• Torque filter to either factory specs or 18-20 lb ft, whichever is less

Filter Number S211

  MSRP USD

Finish Options:

Machine Finish (shown) = $439

S211 PARTS LIST

Housing Quad Ring QR3 Filter Element Retaining Spring FERS5 Gasket Plate Quad Ring QR4 Thread or ID

Overall
Diameter

Overall
Length

Quad Ring OD (For Housing) in 3/4 x 16 3.75 8.75 2.78 mm 95.25 215.9 70.61

Ensure quad ring is fully seated in housing groove and lube with clean oil before installation.

Quad ring can normally be used for several oil changes.

Torque filter to either factory specs or 18-20 lb ft, whichever is less

Filter Number S210

  MSRP USD

Finish Options:

Machine Finish (shown) = $439

S210 PARTS LIST

Housing Quad Ring QR4 Filter Element Retaining Spring FERS5 Thread or ID

Overall
Diameter

Overall
Length

Quad Ring OD (For Housing) in 13/16 x 16 3.75 8.5 2.78 mm 95.25 215.9 70.61

Filter Element – FE101

(Note that this Filter Element does not come with the top threaded cap or the bottom cap)

  MSRP USD $137







Quick Tips

Ensure grommets are seated in filter and lubed before installation.

Filter is designed to be just slightly smaller than factory to allow for variances in factory filter cavities.

Filter Number 2150

MSRP USD: $112 Thread or ID Overall Diameter Overall Length Bypass, Closed End or I.D. in .96 1.9 2.33 .94 mm 24.38 48.26 59.18 23.87

Quick Tips

Ensure grommets are seated in filter and lubed before installation.

Filter is designed to be just slightly smaller than factory to allow for variances in factory filter cavities.

Filter Number 2151

MSRP USD: $80 Thread or ID Overall Diameter Overall Length Bypass, Closed End or I.D. in .955 2.2 2.06 Bypass mm 24.25 55.88 52.32

Quick Tips

Ensure quad ring is fully seated in housing groove and lube with clean oil before installation.

Quad ring can normally be used for several oil changes.

Torque filter to either factory specs or 18-20 lb ft, whichever is less

Filter Number S202

  MSRP USD

Finish Options:

Machine Finish (shown) = $439

S202 PARTS LIST

Housing Quad Ring QR4 Filter Element Retaining Spring FERS5 Thread or ID

Overall
Diameter

Overall
Length

Quad Ring OD (For Housing) in 1 x 12 3.75 8.5 2.78 mm 95.25 215.9 70.61
