Quick Tips

Ensure quad ring is fully seated in housing groove and lube with clean oil before installation.

Quad ring can normally be used for several oil changes.

The o ring on the nose of the filter element is optional. Only used for gasket plate retention.

Included cup wrench fits over machined flats on bottom cooling fin.

Torque filter to either factory specs or 18-20 lb ft, whichever is less

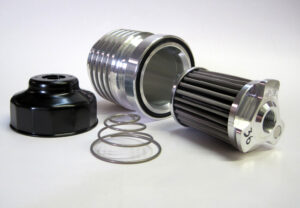

Filter Number S36

  MSRP USD

Finish Options:

Machine Finish (shown) = $189

S36 PARTS LIST

Housing C3 Housing Quad Ring QR2 Filter Element FE36 Filter Element Retaining Spring FERS1 Cup Wrench CW1 Thread or ID

Overall
Diameter

Overall
Length

Quad Ring OD (For Housing) in 2.9 3.5 2.75 mm 1.5 x 16mm 74.5 87 [...]

Quick Tips

Lube both o rings with clean oil and make sure that the filter element slides smoothly on the large bolt coming through the filter element cover prior to installation on the engine. Filter is designed to be just slightly smaller than factory to allow for variances in factory filter cavities.

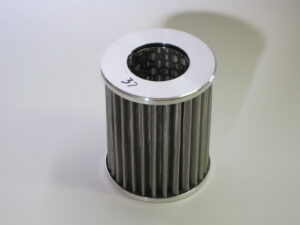

Filter Number S37

MSRP USD: $119 Cover O- Ring 93 x 4mm Thread or ID Overall Diameter Overall Length Bypass, Closed End or I.D. in 1.715 3.23 4 1.715 mm 43.56 82.04 101.6 43.56

Quick Tips

Lube both o rings with clean oil and make sure that the filter element slides smoothly on the large bolt coming through the filter element cover prior to installation on the engine. Filter is designed to be just slightly smaller than factory to allow for variances in factory filter cavities.

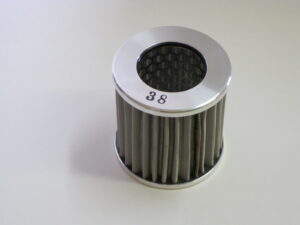

Filter Number S38

MSRP USD: $129 Cover O-Ring -235 Nose O-Ring 7 x 2.5mm Thread or ID Overall Diameter Overall Length Bypass, Closed End or I.D. in 1.65 2.905 3.045 1.65 mm 41.91 73.78 77.34 41.91

Quick Tips

Lube both o rings with clean oil and make sure that the filter element slides smoothly on the large bolt coming through the filter element cover prior to installation on the engine. Filter is designed to be just slightly smaller than factory to allow for variances in factory filter cavities.

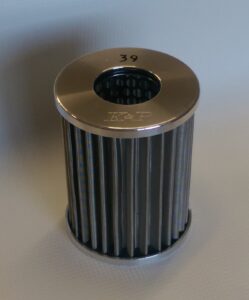

Filter Number S39

MSRP USD: $139 Cover O-Ring 93 x 4mm Thread or ID Overall Diameter Overall Length Bypass, Closed End or I.D. in 1.445 3.235 4.205 1.445 mm 36.70 82.16 106.8 36.70

Quick Tips

Ensure quad ring is fully seated in housing groove and lube with clean oil before installation.

Quad ring can normally be used for several oil changes.

Included cup wrench fits over machined flats on bottom cooling fin.

Torque filter to either factory specs or 18-20 lb ft, whichever is less

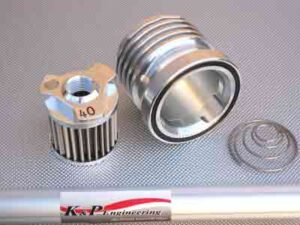

Filter Number S40

  MSRP USD

Finish Options:

Machine Finish (shown) = $179 Anodized Black = $189

S40 PARTS LIST

Housing C5 Housing Quad Ring QR2 Filter Element FE40 Filter Element Retaining Spring FERS1 Cup Wrench CW1 Thread or ID

Overall
Diameter

Overall
Length

Quad Ring OD (For Housing) in 3/4 x 16 2.9 2.7 2.75 mm 73.66 68.58 69.85

Quick Tips

Ensure quad ring is fully seated in housing groove and lube with clean oil before installation.

Quad ring can normally be used for several oil changes.

The o ring on the nose of the filter element is optional. Only used for gasket plate retention.

Included cup wrench fits over machined flats on bottom cooling fin.

Torque filter to either factory specs or 18-20 lb ft, whichever is less

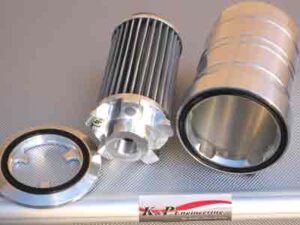

Filter Number S41

  MSRP USD

Finish Options:

Machine Finish (shown) = $299 Anodized Black = $319

S41 PARTS LIST

Housing C6 Housing Quad Ring QR3 Filter Element FE41 Filter Element Retaining Spring FERS2 Cup Wrench CW2 Thread or ID

Overall
Diameter

Overall
Length

Quad Ring OD (For Housing) in 3/4 x 16 3.64 [...]

Quick Tips

Ensure quad ring is fully seated in housing groove and lube with clean oil before installation.

Quad ring can normally be used for several oil changes.

Included cup wrench fits over machined flats on bottom cooling fin.

Torque filter to either factory specs or 18-20 lb ft, whichever is less

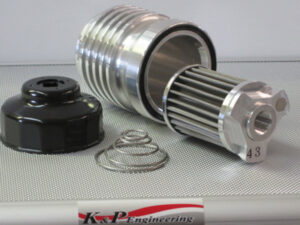

Filter Number S43

  MSRP USD

Finish Options:

Machine Finish (shown) = $189

S43 PARTS LIST

Housing C3 Housing Quad Ring QR2 Filter Element FE43 Filter Element Retaining Spring FERS1 Cup Wrench CW1 Thread or ID

Overall
Diameter

Overall
Length

Quad Ring OD (For Housing) in 5/8 x 18 2.9 3.5 2.75 mm 74.5 87 70

Quick Tips

Ensure quad ring is fully seated in housing groove and lube with clean oil before installation.

Quad ring can normally be used for several oil changes.

The o ring on the nose of the filter element is optional. Only used for gasket plate retention.

Included cup wrench fits over machined flats on bottom cooling fin.

Torque filter to either factory specs or 18-20 lb ft, whichever is less

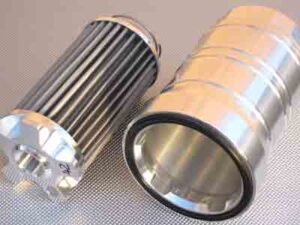

Filter Number S42

  MSRP USD

Finish Options:

Machine Finish (shown) = $299 Anodized Black = $304

S42 PARTS LIST

Housing C6 Housing Quad Ring QR3 Filter Element FE42 Filter Element Retaining Spring FERS2 Cup Wrench CW2 Thread or ID

Overall
Diameter

Overall
Length

Quad Ring OD (For Housing) in 13/16  x 16 3.64 [...]

Quick Tips

Ensure quad ring is fully seated in housing groove and lube with clean oil before installation.

Quad ring can normally be used for several oil changes.

Torque filter to either factory specs or 18-20 lb ft, whichever is less

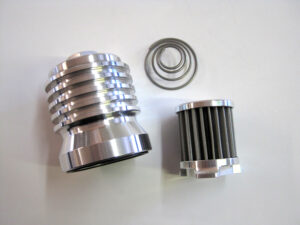

Filter Number S46

  MSRP USD

Finish Options:

Machine Finish (shown) = $149 Anodized Black = $159

S46 PARTS LIST

Housing C8 Housing Quad Ring QR9 Filter Element FE46 Filter Element Retaining Spring FERS3 Thread or ID

Overall
Diameter

Overall
Length

Quad Ring OD (For Housing) in 2.2 2.6 2 mm 14mm x 1.5 55.88 66 51
