Quick Tips

Ensure quad ring is fully seated in housing groove and lube with clean oil before installation.

Quad ring can normally be used for several oil changes.

Included cup wrench fits over machined flats on bottom cooling fin.

Torque filter to either factory specs or 18-20 lb ft, whichever is less

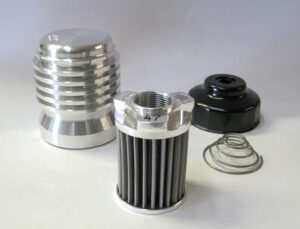

Filter Number S47

  MSRP USD

Finish Options:

Machine Finish (shown) = $189

S47 PARTS LIST

Housing C3 Housing Quad Ring QR2 Filter Element FE47 Filter Element Retaining Spring FERS1 Cup Wrench CW1 Thread or ID

Overall
Diameter

Overall
Length

Quad Ring OD (For Housing) in 2.9 3.5 2.75 mm 26mm x 1.5 74.5 87 70

Quick Tips

Ensure quad ring is fully seated in housing groove and lube with clean oil before installation. Quad ring can normally be used for several oil changes.

Included cup wrench fits over machined flats on bottom cooling fin.

Torque filter to either factory specs or 18-20 lb ft, whichever is less

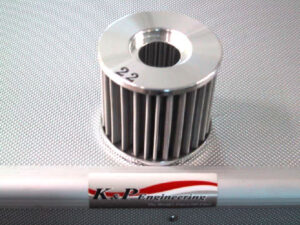

Filter Number S22

Thread or ID Overall Diameter Overall Length Quad Ring OD in .735 2.8 2.46 NA mm 18.66 71.12 62.48 NA



MSRP USD:

$99.00



Cover O-Ring NA

Quick Tips

Ensure quad ring is fully seated in housing groove and lube with clean oil before installation. Quad ring can normally be used for several oil changes.

Included cup wrench fits over machined flats on bottom cooling fin.

Torque filter to either factory specs or 18-20 lb ft, whichever is less

Filter Number S23

Thread or ID Overall Diameter Overall Length Quad Ring OD in .755 2.95 3.19 NA mm 19.17 74.93 81.02 NA



MSRP USD:

$99.00



Cover O-Ring NA

Quick Tips

Lube o rings prior to installation. Ensure filter is fully seated on plastic shaft before installing in engine. Do not twist filter when removing or installing filter onto shaft.

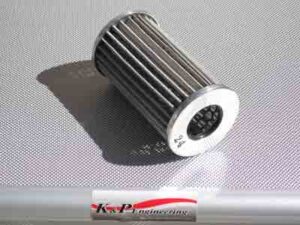

Filter Number S24

Thread or ID Overall Diameter Overall Length Bypass, Closed End,Open End I.D
in 1.138 2.491 4.417 1.163 mm NA



MSRP USD:

$119.00



Cover O-Ring 73 x 3.5mm



Quick Tips

Ensure quad ring is fully seated in housing groove and lube with clean oil before installation. Quad ring can normally be used for several oil changes.

Included cup wrench fits over machined flats on bottom cooling fin.

Torque filter to either factory specs or 18-20 lb ft, whichever is less

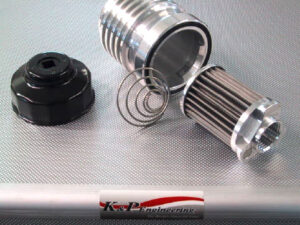

Filter Number S25

Thread or ID Overall Diameter Overall Length Quad Ring OD in 1 x 12 2.9 3.4 2.75 mm 73.6 86.3 69.85 MSRP USD:

Finish Options:
Machine Finish (shown) =$189
Anodized Black=$199
Chrome =$238

S25 PARTS LIST

Housing C3 Quad Ring QR2 Filter Element FE25 Filter Element Retaining Spring FERS1 Cup Wrench CW1



Quick Tips

Ensure quad ring is fully seated in housing groove then lube with clean oil before installation. Quad ring can normally be used for several oil changes.

Included cup wrench fits over machined flats on bottom cooling fin.

Torque filter to either factory specs or 18-20 lb ft, whichever is less

Filter Number S26

Thread or ID Overall Diameter Overall Length Quad Ring OD in 1 x 16 2.9 3.4 2.75 mm 73.6 86.3 69.85 MSRP USD:

Finish Options:
Machine Finish (shown) =$189
Anodized Black=$199
Anodized Black Buffed Edges =$208
Anodized Grey =$199
Black Powder Coat =$204
Chrome =$238
Polished =$238

S26 PARTS LIST

Housing C3 Quad Ring QR2 Filter Element FE26 Filter Element Retaining Spring FERS1 Cup Wrench CW1

Quick Tips

Ensure grommet is seated in filter and lubed prior to installation.

Filter Number S27

MSRP USD

$91.00

  Thread or ID Overall
Diameter Overall
Length Bypass, Closed End or I.D. in .965 2.2 3.985 Closed mm

Quick Tips

Ensure grommet is seated in filter and lubed prior to installation.

Filter Number S28
MSRP USD

$91 Thread or ID Overall
Diameter Overall
Length Bypass, Closed End or I.D. in .955 2.202 3.98 .955 mm

Quick Tips

Ensure grommet is seated in filter and lubed prior to installation.

Filter Number S29

MSRP USD

$91

  Thread or ID Overall
Diameter Overall
Length Bypass, Closed End or I.D. in .935 2.2 2.95 Closed mm
