Quick Tips

Ensure grommet is seated in filter and lubed prior to installation.

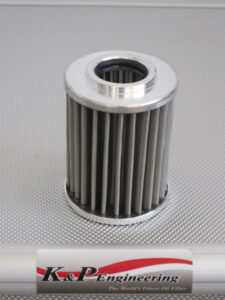

Filter Number S29

MSRP USD

$91

  Thread or ID Overall
Diameter Overall
Length Bypass, Closed End or I.D. in .935 2.2 2.95 Closed mm

Quick Tips

Ensure quad ring is fully seated in housing groove and lube with clean oil before installation.

Quad ring can normally be used for several oil changes.

Included cup wrench fits over machined flats on bottom cooling fin.

Torque filter to either factory specs or 18-20 lb ft, whichever is less

Filter Number S30

MSRP USD Finish Options: Machine Finish (shown) = $189 Anodized Black = $199 Anodized Black with Buffed Edges = $208 Chrome = $238 Polished = $238

S30 PARTS LIST

Housing C3 Quad Ring QR2 Filter Element FE30 Filter Element Retaining Spring FERS1 Cup Wrench CW1 Thread or ID Overall
Diameter Overall
Length Quad Ring OD in 2.9 3.5 2.75 mm 20 x 1.5 74.5 87 70

Quick Tips

Ensure quad ring is fully seated in housing groove and lube with clean oil before installation.

Quad ring can normally be used for several oil changes.

The o ring on the nose of the filter element is optional. Only used for gasket plate retention.

Included cup wrench fits over machined flats on bottom cooling fin.

Torque filter to either factory specs or 18-20 lb ft, whichever is less

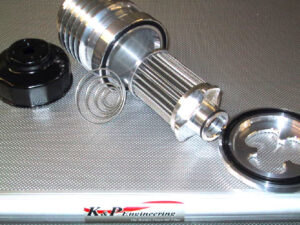

Filter Number S19

The S19 has changed over time.

If you purchased your S19 Before to 8/16/2011 your Adapter Plate uses the QR3 Quad Ring

If you purchased your S19 After 8/16/2011 your Adapter Plate uses the QR5 Quad Ring MSRP USD

Finish Options:

Machine Finish (shown) = $214
Anodized Black = $224 Anodized Grey = $224 Anodized [...]



Quick Tips



Ensure quad ring is fully seated in housing groove and lube with clean oil before installation. Quad ring can normally be used for several oil changes.

Included cup wrench fits over machined flats on bottom cooling fin.

Torque filter to either factory specs or 18-20 lb ft, whichever is less

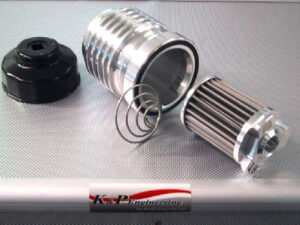

  Filter Number S18

Thread or ID Overall Diameter Overall Length Quad Ring OD in 2.9 3.4 2.75 mm 18mm 73.6 86.3 69.85 MSRP USD:

Finish Options:
Machine Finish (shown) =$189
Anodized Black=$199
Anodized Grey=$199
Anodized Buffed Edges =$208
Polished =$238
Chrome =$238

S18 PARTS LIST

Housing C3 Quad Ring QR2 Filter Element FE18 Filter Element Retaining Spring FERS1 Cup Wrench CW1

Quick Tips



Ensure quad ring is fully seated in housing groove and lube with clean oil before installation. Quad ring can normally be used for several oil changes.

Included cup wrench fits over machined flats on bottom cooling fin.

Torque filter to either factory specs or 18-20 lb ft, whichever is less

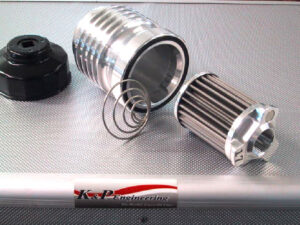

Filter Number S17

Thread or ID Overall Diameter Overall Length Quad Ring OD in  2.9  3.4 2.75 mm 22mm x 1.5  73.6 86.3 69.85 MSRP USD:

Finish Options:
Machine Finish (shown) =$189
Anodized Black=$199
Anodized Grey=$199
Anodized Buffed Edges =$208
Polished =$238
Chrome =$238

S17 PARTS LIST

Housing C3 Quad Ring QR2 Filter Element FE17 Filter Element Retaining Spring FERS1 Cup Wrench CW1

Quick Tips

Ensure quad ring is fully seated in housing groove and lube with clean oil before installation. Quad ring can normally be used for several oil changes.

Included cup wrench fits over machined flats on bottom cooling fin.

Torque filter to either factory specs or 18-20 lb ft, whichever is less

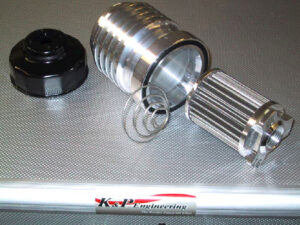

Filter Number S16

Thread or ID Overall Diameter Overall Length Quad Ring OD in  2.9 3.4 2.75 mm 13/16 x 16  73.6 86.3  69.85 MSRP USD:

Finish Options:
Machine Finish (shown) =$189
Anodized Black=$199
Anodized Grey=$199
Anodized Buffed Edges =$208
Polished =$238
Chrome =$238

S16 PARTS LIST

Housing C3 Quad Ring QR2 Filter Element FE16 Filter Element Retaining Spring FERS1 Cup Wrench CW1

Quick Tips

Ensure quad ring is fully seated in housing groove and lube with clean oil before installation. Quad ring can normally be used for several oil changes.

Included cup wrench fits over machined flats on bottom cooling fin.

Torque filter to either factory specs or 18-20 lb ft, whichever is less

Filter Number S10



Thread or ID Overall Diameter Overall Length Quad Ring OD in 2.7 2.8 2.5 mm 13/16 x 16 69 70.5 63.5 MSRP USD:

Finish Options:
Machine Finish (shown) =$179
Anodized Black=$189
Anodized Grey=$189
Anodized Buffed Edges =$198
Anodized Diamond Cut =$238
Powder Coated =$194
Powder Coated Buffed Edges =$203
Powder Coated Diamond Cut =$243
Polished =$228
Polished Diamond Cut =$277
Chrome [...]

Quick Tips





Filter Number S13

Thread or ID Overall Diameter Overall Length Quad Ring OD in  .77  2.96  2.1  NA mm  19.5  75.1  53.3 NA



MSRP USD:

$99.00





Quick Tips



Ensure quad ring is fully seated in housing groove and lube with clean oil before installation. Quad ring can normally be used for several oil changes.

Included cup wrench fits over machined flats on bottom cooling fin.

Torque filter to either factory specs or 18-20 lb ft, whichever is less

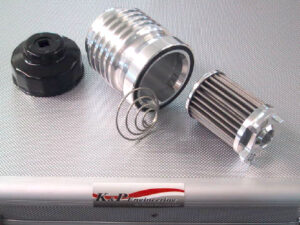

Filter Number S15

Thread or ID Overall Diameter Overall Length Quad Ring OD in  2.9  3.4 2.75 mm 3/4 x 16  73.6  86.3  69.85 MSRP USD:

Finish Options:
Machine Finish (shown) =$189
Anodized Black=$199
Anodized Grey=$199
Anodized Buffed Edges =$208
Polished =$238
Chrome =$238

S15 PARTS LIST

Housing C3 Quad Ring QR2 Filter Element FE15 Filter Element Retaining Spring FERS1 Cup Wrench CW1
