Quick Tips



Ensure quad ring is fully seated in housing groove and lube with clean oil before installation.

Quad ring can normally be used for several oil changes as long as there is no damage.

Included cup wrench fits over machined flats on bottom cooling fin.

Torque filter to either factory specs or 18-20 lb ft, whichever is less

  Filter Number S5

Thread or ID Overall Diameter Overall Length Quad Ring OD in 2.92 3.04 2.75 mm 16mm x 1.5 74.16 77.21 69.85 MSRP USD:

Finish Options:
Machine Finish (shown) =$179
Anodized Black=$189
Anodized Grey=$189
Anodized Buffed Edges =$198
Anodized Diamond Cut =$238
Powder Coated =$194
Powder Coated Buffed Edges =$203
Powder Coated Diamond Cut =$243
Polished =$228
Polished Diamond Cut =$277
Chrome =$228

S5 PARTS LIST

Housing C2 [...]

Quick Tips

Ensure quad ring is fully seated in housing groove and lube with clean oil before installation. Quad ring can normally be used for several oil changes.

Included cup wrench fits over machined flats on bottom cooling fin.

Torque filter to either factory specs or 18-20 lb ft, whichever is less

  Filter Number S4

Thread or ID Overall Diameter Overall Length Quad Ring OD in 2.92 3.04 2.75 mm 3/4 x 16 74.16 77.21 69.85 MSRP USD:

Finish Options:
Machine Finish (shown) =$179
Anodized Black=$189
Anodized Grey=$189 Anodized Buffed Edges =$198 Anodized Diamond Cut =$238
Powder Coated =$194
Powder Coated Buffed Edges =$203
Powder Coated Diamond Cut =$243
Polished =$228
Polished Diamond Cut =$277
Chrome =$228

S4 PARTS LIST

Housing C2 Quad Ring QR2 Filter Element FE4 [...]

Quick Tips

Ensure quad ring is fully seated in housing groove and no oil is between the groove and the quad ring.  Once the quad ring is installed in the filter, then lube with clean oil before installation.

Quad ring can normally be used for several oil changes as long as there is no visible damage.

Included cup wrench fits over machined flats on bottom cooling fin.

Torque filter to either factory specs or 18-20 lb ft, whichever is less

  Filter Number S1

(The S11 is now the S1)

Thread or ID Overall Diameter Overall Length Quad Ring OD in 2.7 2.8 2.5 mm 20mm x 1.5 69 70.5 63.5 MSRP USD:

Finish Options:
Machine Finish (shown) =$169
Anodized Black=$179
Anodized Grey=$179
Anodized Buffed Edges =$188
Anodized Diamond Cut =$228
Powder Coated =$184
Powder Coated Buffed Edges =$193

Quick Tips



Ensure quad ring is fully seated in housing groove and no oil is between the groove and the quad ring.  Once the quad ring is installed in the filter, then lube with clean oil before installation.

Included cup wrench fits over machined flats on bottom cooling fin.

Torque filter to either factory specs or 18-20 lb ft, whichever is less Filter Number S2

(The S12 is now the S2)

Thread or ID Overall Diameter Overall Length Quad Ring OD in 2.7 2.8 2.5 mm 20mm x 1.0 69 70.5 63.5 MSRP USD:

Finish Options:
Machine Finish (shown) =$169
Anodized Black=$179
Anodized Grey=$179 Anodized Buffed Edges =$188 Anodized Diamond Cut =$228
Powder Coated =$184
Powder Coated Buffed Edges =$193
Powder Coated Diamond Cut =$233
Polished =$218
Polished Diamond Cut =$267
Chrome = No Longer Available

[...]

Quick Tips

Ensure quad ring is fully seated in housing groove and lube with clean oil before installation.

Quad ring can normally be used for several oil changes.

Included cup wrench fits over machined flats on bottom cooling fin.

Torque filter to either factory specs or 18-20 lb ft, whichever is less

Filter Number S240

  MSRP USD

Finish Options:

Machine Finish (shown) = $179 Anodized Black = $189

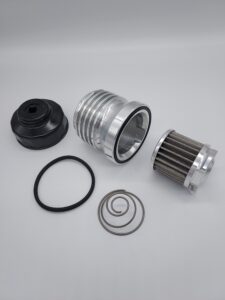

S240 PARTS LIST

Housing C5 Housing Quad Ring QR2 Filter Element FE240 Filter Element Retaining Spring FERS1 Cup Wrench CW1 Thread or ID

Overall
Diameter

Overall
Length

Quad Ring OD (For Housing) in 2.9 2.7 2.75 mm 20 x [...]

Quick Tips

Ensure OEM filter comes out with grommet on the end.

Filter Number 2201

MSRP USD: $95 Thread or ID Overall Diameter Overall Length Bypass, Closed End or I.D. in 0.500 1.495 1.835 Bypass mm 12.7 37.97 46.61

Quick Tips

Ensure OEM filter comes out with rubber seals on each end.  Our filter uses rubber seal on outward end only.

Filter Number 2202 (replaces 2153)

MSRP USD: $95 Thread or ID Overall Diameter Overall Length Bypass, Closed End or I.D. in .489 1.5 1.715 Bypass mm 12.42 38.1 43.56
